IPC-LHT-A2

4MP Full-Color Dome Network Camera

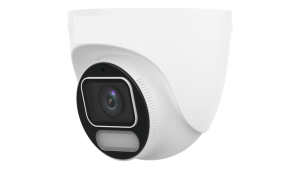

IPC-LHT-A2 4MP FullColor Dome Network Camera

The IPC-LHT-A2 4MP Full-Color Dome Network Camera pairs Black Light 2.0 AI-ISP with an F1.0 large-aperture lens and an intelligent warm-light array to deliver true full-color video around the clock, in a compact, vandal-resistant dome housing with 3-axis adjustment for flexible mounting.

Key Technical Features

  • 4MP (2688×1520) high-definition video
  • Black Light 2.0 AI-ISP for optimized low-light color, detail, and dynamic range
  • Cross-line detection and region intrusion with human/vehicle classification
  • F1.0 large aperture lens and 1/1.8″ sensor for accurate image restoration
  • Intelligent warm-light auto-adjusts to ambient conditions
  • Super 265 encoding at 1 Mbps for efficient HD streaming; PoE support
  • Built-in high-quality microphone
  • SVC scalable video coding for flexible compression; triple-stream capability
  • ROI, adaptive defog, and customizable OSD (size, color)
  • High-clarity optical glass window with 6% improved light transmission
  • Scheduled, interval, and event-triggered image upload
  • Mobile monitoring, 3D noise reduction, network-adaptive streaming
  • Video watermarking; ONVIF, GB/T 28181, HTTPS, RTSP authentication, IP filtering, ARP binding
  • Wide-temperature operation -30°C to 60°C; 4kV lightning protection; IP67; 3-axis adjustment

Application Scenarios

Retail Stores Offices Corridors Parking Structures

Suitable for indoor and semi-outdoor environments such as retail stores, offices, corridors, parking structures, and residential communities requiring discreet, always-on full-color monitoring.

Sensor
Max. Resolution 4MP (2688×1520)
Sensor Type 1/1.8″
Lens
Aperture F1.0
Zoom Type Fixed
Focal Length 2.8 mm / 4.0 mm
Adjustment Range Pan 0°~360°, Tilt 0°~75°, Rotate 0°~360°
Min. Illumination 0.0003 lux
Day/Night Mode Auto
WDR Optical WDR 120 dB
Video
Video Encoding Super 265, H.265, H.264, MJPEG
Video Stream Triple stream
Max. Frame Rate 2688×1520 @ 25 fps
Audio
Audio Encoding G.711A, G.711U, AAC
Built-in Microphone 1
Intelligence
Perimeter Protection Cross-line detection, region intrusion (human/vehicle classification)
Network
Network Protocols IPv4, RTSP, HTTPS, SIP, RTMP, and more
Compatible Integration ONVIF, API, GB/T 28181
Mechanical & Environmental
Power Supply DC12V ±25% / PoE (802.3af)
Max. Power Consumption ≤3.0 W
Ingress Protection IP67
Housing Material Cast aluminum + Plastic
Dimensions Φ118 × 106 mm
Weight 0.48 kg
