IPC-LHT-Y1-25x

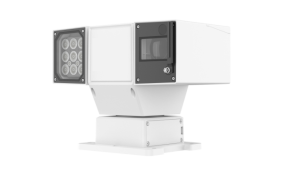

4MP 25× T-Mount PTZ Network Camera
LHT-Y1-25x 4MP 25x TMount PTZ Network Camera

The IPC-LHT-Y1-25x 4MP 25× T-Mount PTZ Network Camera combines a high-precision closed-loop magnetic encoder with Black Light AI-ISP imaging and a full suite of deep-learning analytics, delivering accurate pan-tilt-zoom surveillance even in the harshest outdoor conditions.

Key Technical Features

  • Built-in surge, lightning, and transient protection, compliant with GB/T17626.2/3/4/5/6 Level 4
  • High-precision closed-loop magnetic encoder with accuracy ±0.04°, smooth PT movement, and auto-correction
  • Pole-mounting handle design; Black Light AI-ISP algorithm for exceptional low-light performance
  • Fast and precise focusing with three modes: foreground, background, and area focus
  • One-click data export/import for device replacement and preset fine-tuning
  • Deep-learning intelligence: perimeter protection, people counting, face detection, auto-tracking
  • 120 dB optical WDR, image stabilization, adaptive defog, and anti-heat-wave technology
  • Wiper for clear images in rain and snow
  • Full-spectrum fill-light: 250 m infrared, 100 m white-light
  • Electronic compass for real-time orientation awareness
  • IP67 ingress protection; side/bottom cable exit options; built-in level

Application Scenarios

Perimeter Security Transport Corridors Ports Industrial Sites

Suitable for perimeter security, transportation corridors, ports, and industrial sites — any pole-mounted installation requiring long-range PTZ coverage in rain, snow, or low-light conditions.

Sensor
Sensor Type 1/1.8″
Max. Resolution 4MP (2688×1520)
Lens
Focal Length 6 ~ 150 mm
Zoom Ratio 25×
Aperture F1.5
Illumination Mode Hybrid (IR + white-light)
Illumination Distance IR: 250 m, White-light: 100 m
Min. Illumination 0.0005 lux (Color) / 0.0003 lux (B/W)
WDR Optical WDR 120 dB
Image Stabilization Supported
Defog Adaptive
Video
Video Encoding H.265, H.264, MJPEG
Video Stream Triple stream
Max. Frame Rate 30 fps
ROI Zones 8
Intelligence
Perimeter Protection Cross-line, region intrusion, enter/leave region
People Counting Flow statistics, density detection
Face Detection Three capture modes
Auto-Tracking Tracks vehicles, non-motorized, pedestrians
PTZ
Horizontal Range 360° continuous
Vertical Range -90° ~ +90°
Preset Positions 1024
PTZ Accuracy ±0.04°
Network
Network Protocols TLS1.3, IPv4, RTSP, HTTPS, and more
Compatible Integration ONVIF, GB/T 28181, GA/T 1400, API
Mechanical & Environmental
Power Supply DC24V ±25% / AC24V ±25%
Max. Power Consumption 59 W
Dimensions 323.4 × 186.1 × 244.6 mm
Weight 8.28 kg
Ingress Protection IP67
